FYH Catalog 3320. Complete Catalog showcasing all of FYH’s bearing line up including the FYH Spherical Mounted bearings.

Introducing FYH Spherical Roller Bearing Units.

More than sixty years of experience and innovation in the field of mounted ball bearing units has lead to the development of mounted spherical roller units that cater to a wide range ofapplications and industries. Bearing and housing production are accomplished entirely by FYH while utilizing only the highest quality materials available. Through meticulous design enhancements and careful material selection this heavy duty mounted ^ roller series attains the designation of "EXTRA TOUGH".

The redesigned shape and laser marked housings make the surface of our new stainless-steel housings smoother than ever. The flatter surface ensures there is no place for water to pool after washdown. The smooth housing and solid base reduce the risk of bacterial growth.

Our new stainless units accept both stainless and plastic covers. The plastic covers include a drain hole to allow any water that gets inside the cover to drain out. All our housings are casted using SUS316 grade stainless steel which is much more corrosion resistant than 304 stainless. All of our stainless inserts come packed with H1 food grade grease and are perfect for food and beverage applications. FYH utilizes our original Floback seal that offers multiple lip protection during washdown. FYH's new stainless series is designed to stand up to demanding applications such as food and beverage, pharmaceutical packaging, fertilizer applications and salt spreaders.

NEW DESIGNS: The new FYH original solid base pillow block housings seat better and produce a more stable mounting configuration that significantly reduces vibration. The support ribs have been eliminated to make more room for mount- ing bolts and washers, yet these housings are more than 30% stronger than before while also reducing housing weight.

FLOBACK SEAL: The new pressed seals have an inward facing lip which allows grease to flow back towards the balls and raceway during operation thereby improving lubrication performance and extending bearing life. The new FYH pressed seal design allows for excellent bearing outer ring roundness which maintains the FYH.

The Corrosion Resistant Series is available in a wide array of sizes and styles, and units may be customized with a number of different specialized options to accommodate virtually any application. Federal compliance can be assured with FYH Bearing Units. Available in 316 Stainless Steel, Thermoplastic, Nickel Plated, and Trivalent Zinc Chromate housings and stainless steel inserts.

The FYH NA3 series is a drop-in for the Fafnir RAO units and GN inserts. This bearing is extremely popular for the cotton industry.

Heavy Duty Units with Eccentric Locking Collars. These bearings are drop-in replacements for FAFNIR RAO units and GN inserts. Commonly used in the cotton industry.

The FYH Dust Resistant Units consists of a variety of supplemental sealing options that function extremely well in the exclusion of foreign matter. These options can work well by themselves or in combination with each other. From food processing and agricultural to wash-down and mining and aggregate, the FYH Dust Resistant Units can stand up to the toughest contamination challenges.

FYH offers a line of auto-lubrication systems for your applications. These units auto fill your FYH unit as needed on demand.

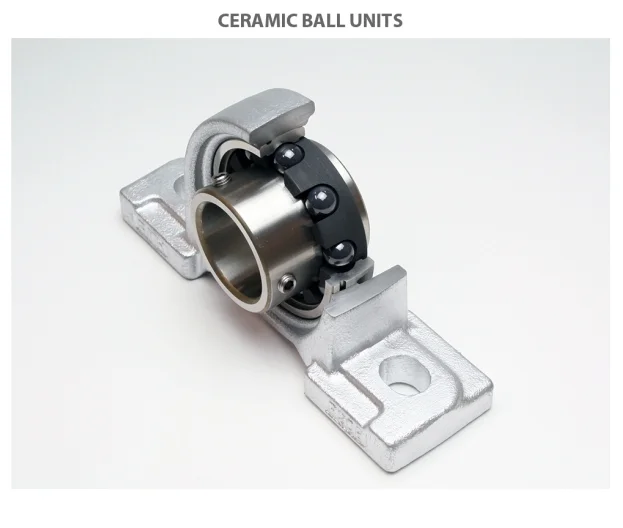

High Temperature Ceramic bearings made by FYH. Several options include different seals, graphite and steel cages, and other high temperature options. Made to order per customer specifications.

The FYH NU-LOC bearing grips the shaft more uniformly, which allows 360 degrees of equalized locking contact. The roundness of the ball path on NU-LOC bearings results in better operation and longer life. NU-LOC concentric locking collars are designed to prevent shaft maring and burring. A single standard hex head cap screw can be tightened quickly and easily. NU-LOC bearings can replace either setscrew or eccentric locking collar inserts.

The FYH Air Handling Series is designed for a wide variety of highly demanding HVAC and air handling applications.

A showcase of SCC abilities and capabilities including screw conveyors, bucket elevators, screw-lifts, and drag conveyors.

A valuable resource for engineering design data for screw conveyor applications.

Screw Conveyor Corporation screw conveyors that are easy to install, simple to maintain, and adapt easily to transporting bulk materials in a broad range of applications. Quality screw conveyor systems and components are available in a wide range of designs and materials. We can meet your application needs in Helicoid and Sectional Flights or with adaptations including ribbon, special pitch or tapered. Various gauges of steel, stainless steel, hardened flight surfaces and other alloys are also available. .

Our bucket elevator line centers around models that range in capacity from 300 to 25,000 cu ft./hour, typically single-trunk design, with heights of approximately 100 feet or less. We have designed and manufactured elevators to much greater heightsand capacities and do so on a case by case basis. SCC elevators, whether centrifugal or continuous design, are built with meticulous attention to detail and your job-specific requirements. SCC’sHuck® bolted casing sections allow for easy assembly, consistent structural connection, and time saving erection. The result is a superior elevator housing.

The Super-Flo Drag Conveyor was first conceived, and then patented by SCC to provide customers with a high capacity, non-agitating, self-cleaning conveyor that possessed low energy requirements. A properly configured Super-Flo can be designed to economically and effectively move bulk materials in both horizontal directions as well as on an incline with low product degradation. The Super-Flo also keeps dust contained and is a solid, durable solution for conveying a broad range of materials.

The Screw-Lift conveyor is ideal for elevating, distributing and reclaiming an exceptionally wide range of bulk materials efficiently in a minimum of valuable floor space. Generally speaking, if your material is not extremely abrasive and can be conveyed in a horizontal Screw Conveyor application, it can be elevated in a Screw-Lift Conveyor and without many of the problems inherent in other types of elevating equipment.

For 100 years, MBL has been a leader in the belting industry.

A listing of all the Mitsuboshi Belting products available in the USA.

High horsepower rubber timing belt that drops in directly to our competitor’s noisy polyurethane timing belt.

» High-tensile strength Carbon Cord

» Abrasion resistant, low friction tooth fabric

» High elastic, high hardness HNBR rubber

» Increased durability

» Rubber construction for superior flexibility

» Special low friction fiber for the tooth fabric

» Reduced high frequency noise

A complete manual for design of any MBL timing belt application.

A complete manual for design of any MBL v-belt application.

Banded 5V and 8V aramid fiber v-belts for high torque and shock load applications.

Mitsuboshi Endless timing belts

Available in: T5, T10, AT5, AT10, HTD 5M, HTD 8M, HTD 14M

For severe operating conditions where light duty FHP belts may stretch or pull apart due to heavy shock loads

Aramid fiber is used in the tensile cord for length stability

Provide greater horsepower than light duty FHP belts

Special outer covering designed for backside idler applications

Resists extreme temperatures, high humidity, oil and cracking

VFD packages for up to 150hp. Founded in 1975, LITE-ON Technology Corp. (TWSE: 2301) is a worldwide leading provider of optoelectronics, information technology, storage devices, and mobile devices components. Its product portfolio spans a broad range of applications, including computers, communications, consumer electronics, automotive electronics, LED lighting, cloud computing, industrial automation as well as biotech and healthcare. With 50 factories, 30 branches, 250 hubs and over 60,000 employees globally, LITE-ON is already part of your daily life.

Downloadable PDF version.

ALSO AVAILABLE IN POSTER SIZE: CONTACT US TO RECEIVE ONE

An internal look into how TECHTOP motors are manufactured

• NEMA Premium Efficiency

• Dual Voltage - Tree Phase 230/460V

• 3600/1800/1200 RPM - 2/4/6 Pole

• Inverter Duty -15:1 Constant Torque (MG1 Part 31)

• Totally Enclosed Fan Cooled IP 55 Protection

• VPI Lap wound Stator with Anti-fungal Coating

• Double Lip Oil Seal on DE & ODE

• Internal Shaft Grounding Brush

• 1.25 SF - 143T and Up

• 50 Hz Capable at 1.0 SF

• 40° C Ambient Temperature Rating

• 1045 Carbon Steel Shaf

• Multi-mount Frame with Removable Feet

• Oversized Drive End Bearing

• One-Way Brass Condensation Drains

• Aluminum Conduit Box 90° Rotatable

• Class F Insulation System with Class H Stator

• F1, F2, F3 Box Position Convertible (Shipped F1)

• Class 1, Division 2, Group C & D Compliant

• Installation up to 3300 f Altitude

• 36 Month Warranty from Purchase Date

ALL Cast Iron Severe Duty designs are a standard with TECHTOP.

We are putting features back where they belong in the motor industry. See many of the features in this download

Come and learn about our beginnings and our capabilities

56C motors with brake kits, shaft grounding brushes, encoder ready, and much more.

Download this page to help you troubleshoot your metric motor application.

If you have a picture of the complete motor and the name plate, this will help aid TECHTOP in specifying the correct motor for your application.

One page wiring diagram for all TECHTOP motors.

JWC Logo

MBL Giga Torque is a drop in replacement to the Gates Poly Chain line of belting. Our design allows for higher horsepower, higher temperature ratings, and a quieter belt than our competitor.
